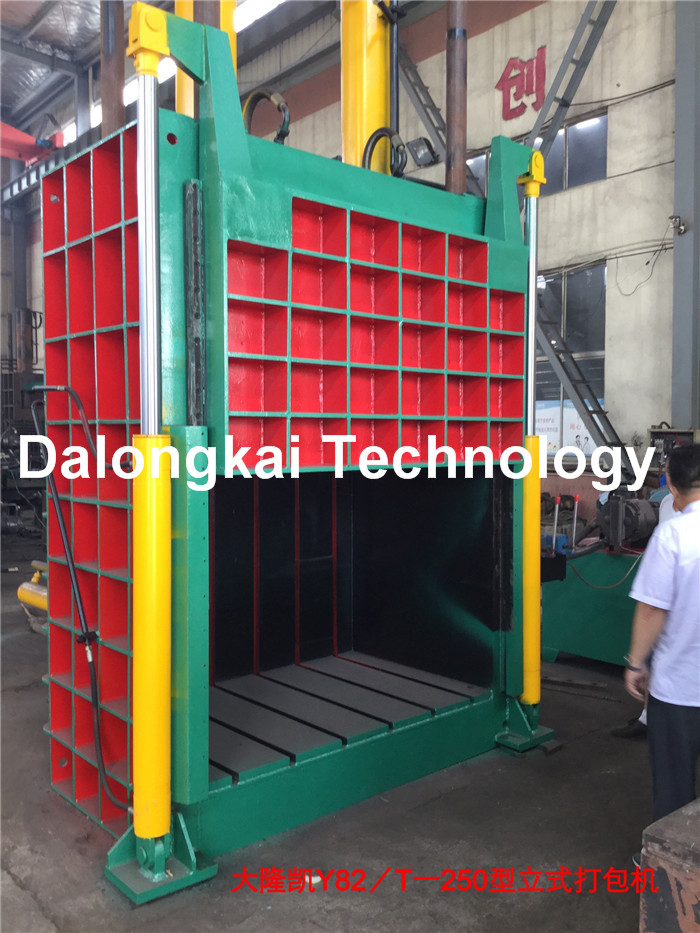

Hydraulic Driven Type , Y82 Supermarket Paper Baler For Compress Waste Materials
Application
Y82-250 supermarket special paper baler is designed for supermarkets and shopping malls packaging cartons and plastic waste and other waste materials compressed light bulbs packed a packer.
Introduction
1. 220V lighting power, with a two-pin plug, plug and play.
2. Small footprint, Dimension 1600 × 600 × 1980 mm (length × width × height), suitable for indoor use.
3. Built-in cabinet tied belay preset slots, easy to bundle package.
4. With special reclaimer forklifts, without manual handling.
5. Discarded cardboard packaging can be easily placed in the bin, the bin is full can be directly compressed package, which saves floor space, keep the environment clean, but also save a lot of labor.
Technical parameters
| 1 | Main Cylinder | Model | YG80/30-815 | 2 PCS |
| Nominal Force | 120KN | 12 Tons |
| Stroke | 815mm | |
| 2 | Press Box Size(L*W*H) | 800×500×1455mm | |
| 3 | Bale Size(L*W*H) | 800×500×(800)mm | |
| 4 | Hydraulic System Pressure | 12.5Mpa | |
| 5 | Operation | Button Control | |
| 6 | Bale Discharge | Manual | |
| 7 | Motor | Model | L90L14B34 | |
| Power | 2.2KW | 220V |
| Nominal Speed | 1440r/min | |
