Brand Name : DLK
Model Number : Y81QF-250
Certification : ISO9001
Place of Origin : Made in China
MOQ : 1 set
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 10 sets /month
Delivery Time : 30-40 days
Packaging Details : Nude packing
Product Name : Scrap Iron Baler
Bale discharging mode : Automatic Turning-out
Main Cyl.Force : 250 ton
Voltage : 380V,50HZ (Customized)
Power : 60 kw
Bale weight : 250-450 kg
Bale size : 500*500mm
Color : Gray & Green (Customized)
Application : Aluminum alloy and other scrap metal
Warranty : 1 Year
Product Description

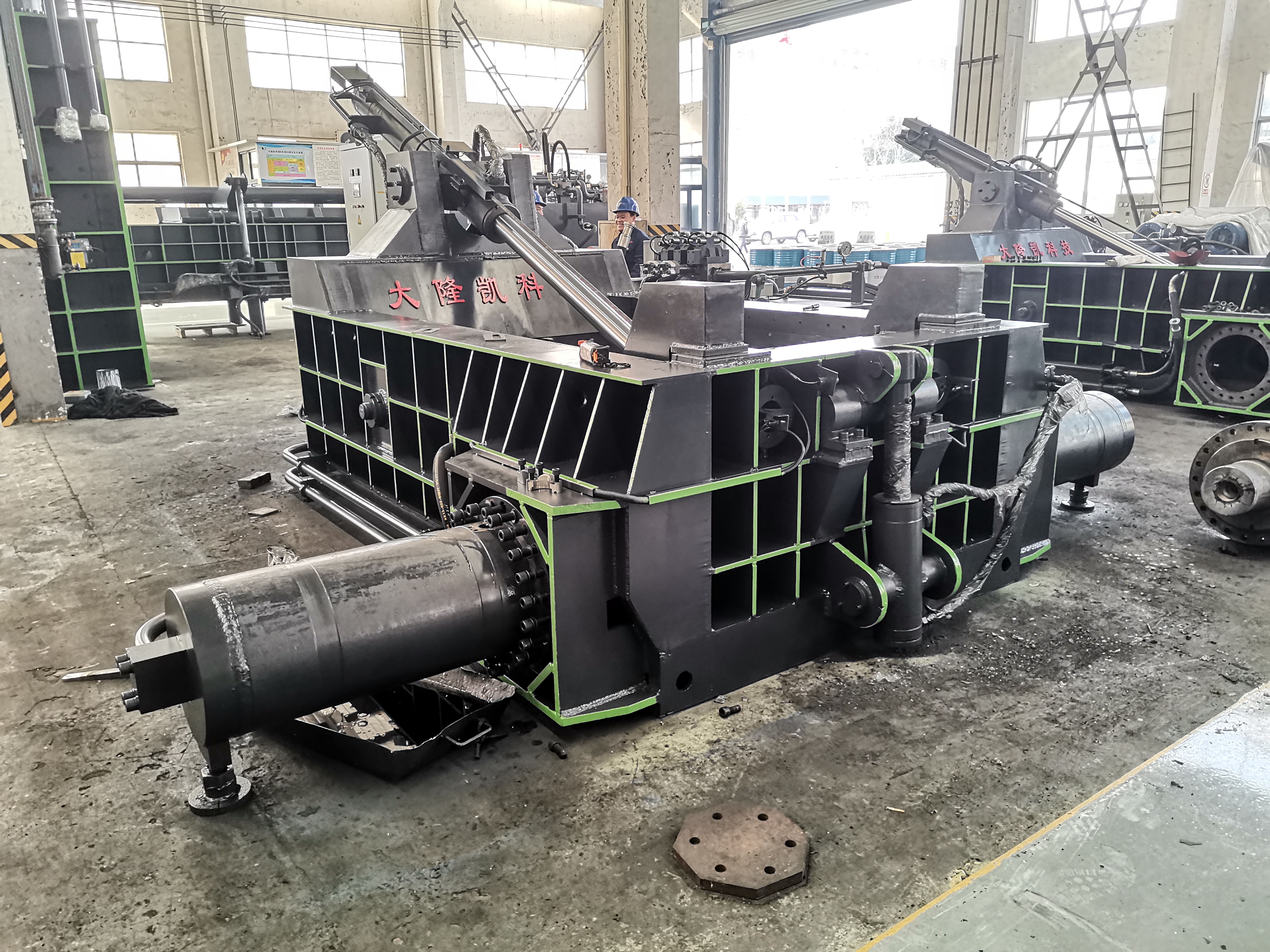

Y81 series 250-ton scrap metal baler can be used in material regeneration, waste utilization, circular economy and other industries. This series of balers adopts PLC control system, which is easy to operate, fast and efficient. The main cylinder pressure of this machine is 250 tons, the size of the silo is 2500*2000*1000mm, and the size of the bundle can reach 500*500mm. The package block is pushed out of the material box through the front rotary cylinder. The main cylinder pressure and material box size of the baler can be customized according to customer needs.
Technical Parameters
NO. | Parameter name and content | ||||
1 | Main oil cylinder | Model | YG340/220 | Qty. | 2pc |
Normal force | 2500KN | Stroke | 730mm | ||
2 | Side pressure cylinder | Model | YG240/160 | Qty. | 2pc |
Normal force | 1100kN*2 | Stroke | 2070mm | ||
3 | Turning bag cylinder | Model | YG240/160 | Qty. | 1pc |
Normal force | 1100kN | Stroke | 1900mm | ||
4 | Door cover cylinder | Model | YG140/75 | Qty. | 1pc |
Normal force | 120kN | Stroke | 320mm | ||
5 | Cooler | Model | GLC-12m² | Heat exchange area | 12㎡ |
6 | Cooling Tower | Model | LJR-20L | Power | 0.55kW |
7 | Water circulating pump | Model | ISG50-125A | Power | 1.5kW |
Flow | 16.3m³/h | Qty. | 2900r/min |
The parameters in the above table are for reference only.
Application
The baler Can Compressing Machinery Scrap Iron Aluminum Metal Baler is used to compress scrap metal(steel, copper, aluminum,stainless steel, etc)into metal block or metal bale. The purpose is to save the transportation cost or reduce the raw material loss when smelting.
Company Profile
Certifications
FAQ
Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized hydraulic machinery and equipment in China, and also one of the production bases of metal hydraulic baler and metal shearing machine.
Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog.
Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q4:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
![]() |
